Chapter 3 Basic Repository Tasks

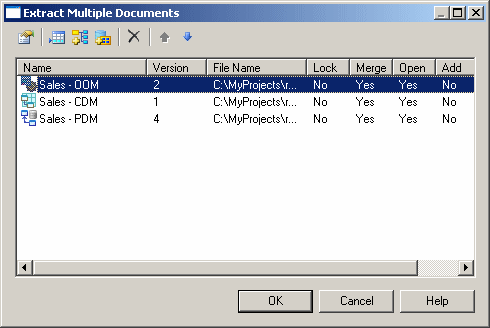

Using the Extract Multiple Documents window

The Extract Multiple Documents window allows you to extract multiple documents from the repository:


You can arrive at this window in any of the following ways:

The following tools are available in this window:

Tool Description

Settings – Opens the Extract Document window (see Using the Extract Document window) for the selected document to allow you to specify extraction parameters.

Add Document Version - Opens the Extract Document window (see Using the Extract Document window) to allow you to select a document to add to the extraction list.

Add Related Document Versions – Adds all documents related to the selected document through shortcuts or generation links to the extraction list. This tool allows you to extract the global environment of a model.

Add Document Versions from a Configuration – Opens a selection window allowing you to specify a configuration to add to the extraction list. A configuration is a set of documents defined in the repository under a label. When you select a configuration, you add all the document versions included in it to the extraction list.

Delete - Removes the selected document from the extraction list.

Move Up - Moves the selected document up in the list.

Move Down - Moves the selected document up in the list.
