Chapter 2 Introduction to the Repository

Understanding the repository as a Client/Server environment

The PowerDesigner repository is used to store documents in a central server accessible by the different team members and to keep records (versions) of the development process.

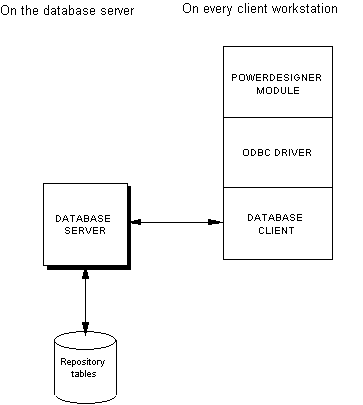

Without the repository proxy

The structure is the following without using the proxy:

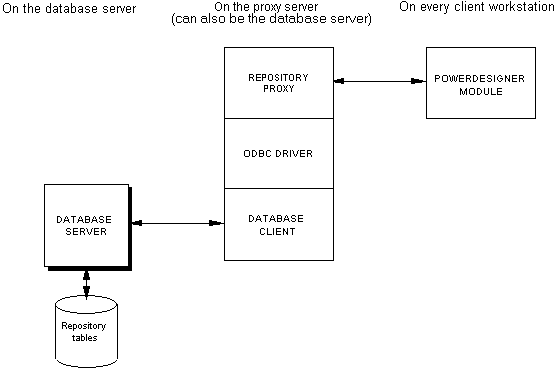

With the repository proxy

The structure is the following when using the repository proxy, which can also be on the same computer as the database server:
