Chapter 12 Migrating from Previous Versions

Extracting all the projects from a dictionary

You can extract all the projects from a dictionary and the models they contain.

When you extract all the projects, each project becomes a sub-directory in the destination directory. The models in each project are extracted as files with the corresponding extension.

To extract all the projects of a dictionary:

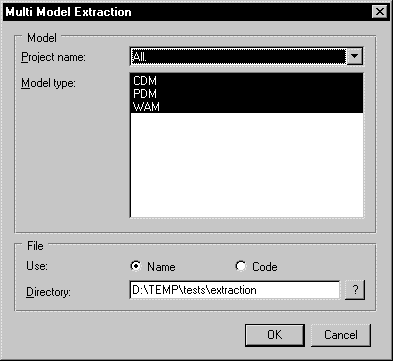

1. Select Dictionary→Multi-Model Extraction.

   The Multi-Model Extraction dialog box appears.
2. Select All in the Project Name dropdown listbox.
3. Type a destination directory in the Directory box.

4. Click OK.
