Chapter 12 Comparing and Merging Models

Synchronization results

When you synchronize objects and linking objects, you obtain the following result:


Object 		Within the same package Between different packages
Object

Linking object 		Objects on the left pane and parent objects are synchronized Object moved to package to be merged and removed from package on the left pane

Steps To synchronize objects manually:

  1. Select the item you want to synchronize from one of the model trees.
  2. Select the Manually Synchronize Two Objects tool.

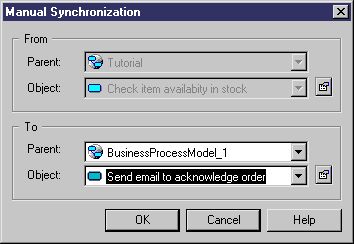

    The Manual Synchronization dialog box is displayed. According to the merge action proposed, the From or the To box is editable.
  3. Select a new package or model in the Parent list.
  4. Select the object that will become the reference for synchronization in the Object list.
  5. Click OK.

    The selected items are synchronized and the tree view of the model to be merged is updated in order to show the impact of the manual synchronization.
