Chapter 5 Managing Repository Documents

Example

Model "draft_design" contains entity Customer. You create an external shortcut of Customer in model "design1". In model "design1", you create entity Sales and create a relationship between the shortcut of Customer and Sales.

You consolidate both CDM and make sure the Extract Dependencies check box is selected in the Consolidation dialog box.

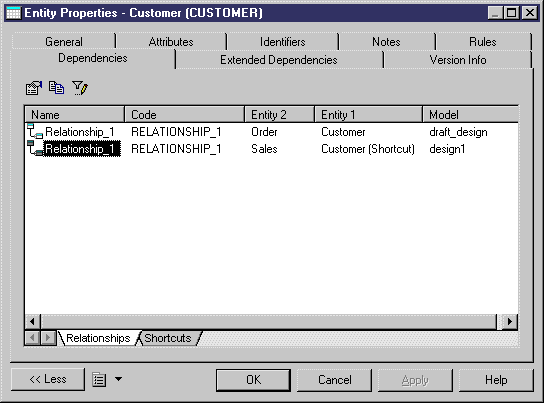

When you open the Dependencies page of entity Customer in the target model, the following information appear to indicate that the entity has a shortcut and this shortcut is used by a relationship in another model:
