Chapter 5 Managing Repository Documents

Selecting different versions of a model in the repository

You can compare different versions of a model in the repository.

Steps To select different versions of a model to compare from the repository:

  1. Select a model in the repository Browser.
  2. Right-click the node and select Compare.

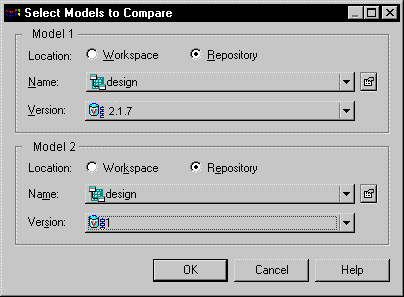

    The Select Models to Compare dialog box appears. The repository radio buttons are both selected in the Model 1 and Model 2 boxes.
  3. Open the Version dropdown list box and select a version in the Model 1 and Model 2 groups boxes.


    Note   Model properties
    You can use the Properties tool, beside the Name box to open the model property sheet in read only mode.

  4. Click OK to start the comparison.
