Chapter 2 Requirements model basics

Creating a requirements model using the New model from template option

To create a new requirements model using the New model from template option:

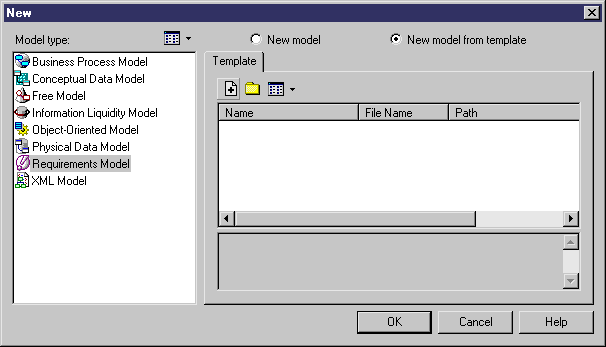

1. In the menu bar, select File→New to display the New dialog box.
2. Select Requirements Model in the list of model types.
3. Select the New model from template radio button, in the upper right part of the dialog box, to display the Template page.

4. Select a model template from the list.


      List of templates
   You can select user-defined model templates (use the Change user-defined model templates folder tool to specify the user templates folder) and copy some existing models as model templates using the Copy model to user-defined model templates folder tool.



   For more information on model templates, see section Creating a model, in chapter Managing Models, in the General Features Guide.
5. Click OK.

   A new requirements model is created in the Workspace.
6. Select Model→Model Properties.

   The model property sheet appears.
7. Type a name and a code for the model.
8. Click OK.
