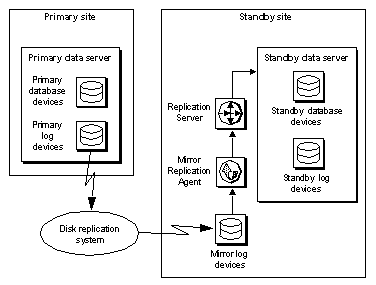

Figure 1-1 shows a typical Mirror Replication Agent system configuration for ASE. Arrows illustrate the flow of mirrored log device data and replicated transactions during normal Mirror Replication Agent system operation, that is, while replicating transactions from the primary database to the standby database.
Figure 1-1: Sybase replication system with ASE
