This section provides information for helping BlackBerry mobile device users to get set up to use Unwired Accelerator. For each user, you will need to set up a user account through Mobile Web Studio, and supply the following information to the user:
Location of UA offline client – each user must install the UA offline client on the BlackBerry device. You will need to develop a process for making the Uabbapp.alx and Uabbapp.cod files available to users.
User name – the user account you created through Mobile Web Studio
Password (generated when you created the Mobile
Web Studio account; such as Kp17kjo5)
Resource ID, such as 21
UA server name, such as lab2k.sybase.com
UA HTTP port number, such as 4040
This section shows how to install the Unwired Accelerator offline client application on a BlackBerry device. The offline client enables you to use the applications you create through Unwired Accelerator on your BlackBerry device in offline mode.
Information is also provided for setting up the offline client on the BlackBerry simulator, which is available for download from Research in Motion.
Installing an Unwired Accelerator offline client
Connect the BlackBerry device to the computer that contains your Uabbapp.alx and Uabbapp.cod files (Unwired Accelerator).

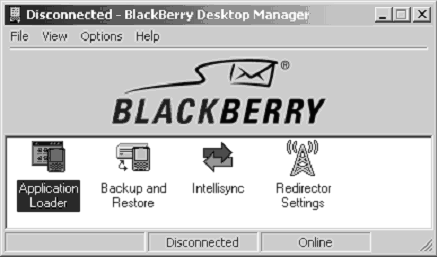

Run the BlackBerry Desktop Manager using RIM’s documentation.
Click Application Loader to start the wizard, then click Next. The Application Loader wizard displays.
Click Add, navigate to %SYBASE%\UnwiredAccelerator70\tomcat\webapps\onepage \BlackBerry, and select the UAbbapp.alx file.
Click Open. The application is listed on the Application Loader wizard.
Click Next to continue. The application is installed on your BlackBerry device.
Access your BlackBerry device. You see the Unwired Accelerator (UA) icon.
To run the Unwired Accelerator offline client, use the
trackwheel to highlight the Unwired Accelerator (UA) icon, and open
it. The Unwired Accelerator screen displays. The message starting
with Currently there are no synchronized applications
available displays.
Set up a user on the BlackBerry device as described in “Setting up an Unwired Accelerator user on the BlackBerry device”.
This section shows how to install an Unwired Accelerator offline client application on a BlackBerry simulator. See “Guidelines for installing BlackBerry server and client software” for information about downloading the simulator from RIM to your desktop.
Installing a UA offline client on the simulator
This procedure is for BlackBerry 3.7.
Navigate to %SYBASE%\UnwiredAccelerator70\tomcat\webapps\onepage \BlackBerry.
Copy the UAbbapp.alx and UAbbapp.cod files into your BlackBerry simulator installation directory:
%RIM%\Research In Motion\BlackBerry JDE 3.7\simulator
Select Start | Programs | Research In Motion | BlackBerry Java Development Environment 3.7 | MDS Simulator to start the BES simulator. You can minimize the Java.exe window.
Select Start | Programs | Research In Motion | BlackBerry Java Development Environment 3.7 | Device Simulator to start the BlackBerry device simulator. You can minimize the Device Simulator and Radio Simulation Control Panel windows.
Access the BlackBerry Handheld Simulator window. You see the Unwired Accelerator (UA) icon.
To run the UA offline client, highlight the Unwired
Accelerator icon, and open it. The Unwired Accelerator screen displays.
The message starting with Currently there are
no synchronized applications available displays.
Set up a user on the BlackBerry simulator as described in “Setting up an Unwired Accelerator user on the BlackBerry device”.
This describes how to set up a user on the BlackBerry device or simulator.
Setting up a UA user on BlackBerry
Make sure the BlackBerry offline client is running on the device. You should see the Unwired Accelerator icon in the application menu.
Select the Profiles option on the trackwheel menu.
From Connection Profiles, select the New Profile option from the trackwheel menu.
On the
New Profile window, enter your profile name, username, password, resource
id, server name and domain, and port number. This example creates
a second masuper/m8super account, mwsAdmin.
Profile Name – the profile
name for the account, such as mwsAdmin.
Username – the account user name, such
as masuper.
Password – the account password, such as m8super.
Resource id – the default resource identifier
(RID) for the account, such as 21 for
Unwired Accelerator.
Server name – the server and domain on
which Unwired Accelerator is running, such as lab2k.sybase.com.
Port number – the port used to access Unwired
Accelerator, such as 4040.
Select Save from the trackwheel menu, and save the settings.
Highlight the new profile, and select Set as Active from the trackwheel menu to make the profile active.
Select Close from the trackwheel menut ot return to the Unwired Accelerator screen.
Once you use Mobile Web Studio to create mobile applications, and synchronize, you will see the applications on the mobile device. To create mobile applications, see these Unwired Accelerator documents:
Quick Start Guide
Mobile Application Development Tutorial
