You can use Adaptive Server Enterprise to:
Publish any user-defined messages to the TIBCO EMS or MQSeries messaging system.
Subscribe to (consume) events from the TIBCO EMS or MQSeries messaging system.
In this mode, applications can use Adaptive Server Enterprise directly, taking advantage of Transact-SQL® functions to publish and subscribe messages.
You can use RTDS with Adaptive Server Enterprise for:
New applications written on Adaptive Server version 12.5.3 (or higher) – allows messaging services to be build into the application within transactions.
Legacy applications, with Adaptive Server upgraded to version 12.5.3 (or higher)
To do so, you must install Adaptive Server Enterprise version 12.5.3 and (or higher) with messaging services functionality and either of the following software components provided in the product bundle:
TIBCO EMS Message Bus system version 4.2 – for more information, see the TIBCO Web site.
MQSeries messaging system version 5.3 – Adaptive Server does not include IBM WebSphere MQ Series; you must obtain the software separately and obtain the license from IBM. For more information, and to obtain MQ dynamic load libraries, see the IBM WebSphere MQ Web site.
You can publish database events from Adaptive Servers earlier than version 12.5.3a to the TIBCO EMS or MQSeries messages by using Replication Server.

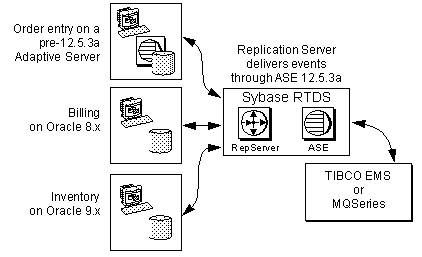

Figure 1 shows this set-up, where Adaptive Server acts as an event hub for heterogeneous applications, with Replication Server delivering events through Adaptive Server.
Figure 1: Using Adaptive Server as an event hub.
To do so, you must also install Replication Server®, which is provided in the RTDS product bundle. In this form of usage:
Replication Agent for different RDBMs publish data changes to Replication Server
Replication Server, through the use of replication function strings, can transform, then call appropriate Adaptive Server messaging function for Adaptive Server to publish the message to the message bus.
