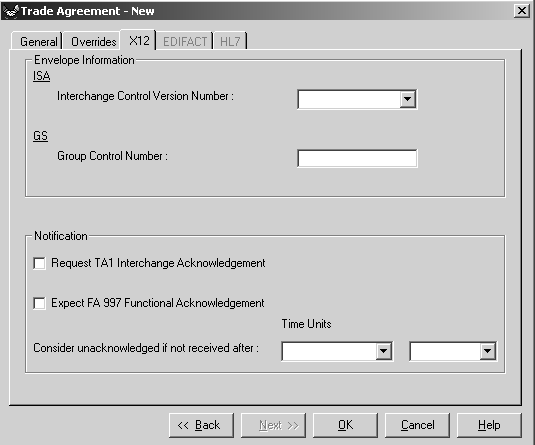

Trade Agreement window – X12 tab

Interchange Control Version Number

Version of the X12 standard used in the map. This value is used to populate ISA 12.

Group Control Number

This field allows overriding the group count that is automatically incremented each time the transaction is run. Ordinarily, you would not change this number.

Expect FA 997

Used to indicate whether the sender of this transaction expects a functional acknowledgement.

Interchange Control Version Number

Version of the X12 standard used in the map. This value is used to populate ISA 12.

Group Control Number

This field allows overriding the group count that is automatically incremented each time the transaction is run. Ordinarily, you would not change this number.

Request TA1

Used to indicate whether there is an agreement between the sender and receiver that the receiver of this EDI message will send a response back to the sender affirming that the ISA envelope was received. If so, the system should expect to receive this acknowledgement.

Expect FA 997

Used to indicate whether the sender of this transaction expects a functional acknowledgement

Consider unacknowledged…

In the two text boxes following “Consider unacknowledged if not received after,” enter values that tell the program the period of time in which you expect to receive a functional acknowledgement. If an acknowledgement is received after this period, it is considered overdue. (This allows EC Gateway to report on overdue acknowledgements.) Time Units specifies the unit of measure (DAYS, HOURS, MINUTES, or SECONDS) for the period during which an acknowledgement to your outgoing message must be received. In the text box following Time Units, you select the actual number of units of time after which an acknowledgement is considered overdue. The drop-down list includes the valid values 1 – 99.
