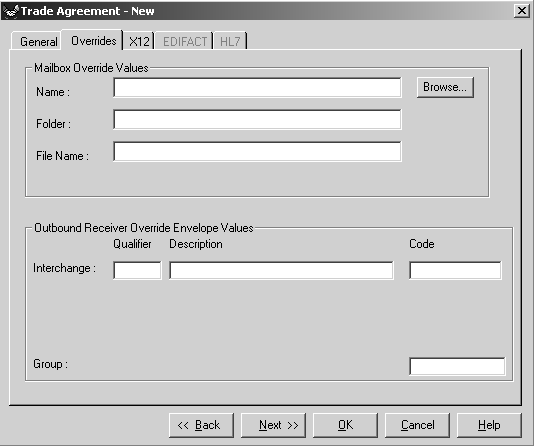

After configuring the General tab, select the Overrides tab. The fields on the Overrides tab depend on a standard and map type selected (there are different overrides for inbound and outbound maps and for different standards).
Use this window to override values that were established for the given Trading Partner.
Field |
Description |
|---|---|
Name |
A string identifying the mailbox. |
Folder |
Directory of the physical location. |
File Name |
The name of an Any-to-Any, EDIFACT, HL7, or X12 file for routed data. This filename is used in the IN, OUT, GOOD, BAD, and OTHER mailboxes. |
Interchange Qualifier |
Overrides the value of the TP Interchange Qualifier field (You can obtain a qualifier from a list of available parameters by right-clicking on this field). |
Interchange Description |
Overrides the value of the TP Interchange Description field (based upon the Interchange Qualifier). |
Interchange Code |
Overrides the value of the TP Interchange Code field. |
Group Code |
Overrides the value of the Group level code entered on a TP General tab. |
Field |
Description |
|---|---|
Name |
A string identifying the mailbox. |
Folder |
Directory of the physical location. |
File Name |
The name of an Any-to-Any, EDIFACT, HL7, or X12 file for routed data. This filename is used in the IN, OUT, GOOD, BAD, and OTHER mailboxes. |

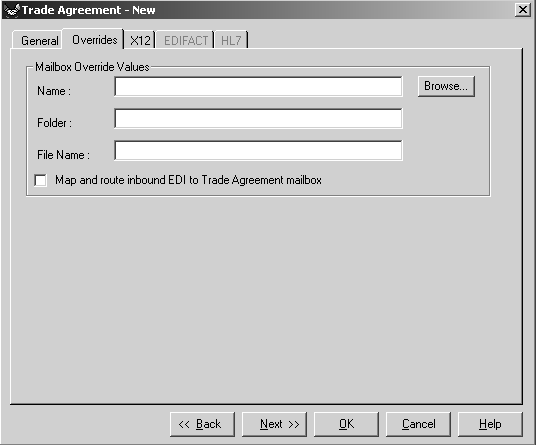

Map and route inbound EDI to Trade Agreement Mailbox |
This check box allows both the pass-through (routing) of data and the running of maps if it is checked. This must be checked if you want to generate bad EDI and place it in the trading partner’s BAD folder. This is always used when running compliance maps. |
Field |
Description |
|---|---|
Name |
A string identifying the mailbox. |
Folder |
Directory of the physical location. |
File Name |
The name of an EDIFACT output file for routed data. This file name is used in the IN, OUT, GOOD, BAD, and OTHER mailboxes. |
Interchange Qualifier |
The Interchange Qualifier parameter that overrides the Interchange Qualifier defined in the Company Interchange Qualifier field. You can obtain a qualifier from a list of available parameters by right-clicking on this field. |
Interchange Description |
The description of the code used that overrides the Interchange Description defined in the Company Interchange Description field (based on the Interchange Qualifier). |
Interchange Code |
The value of the Interchange Code that overrides the Interchange Code defined in the Company Interchange Code field. |

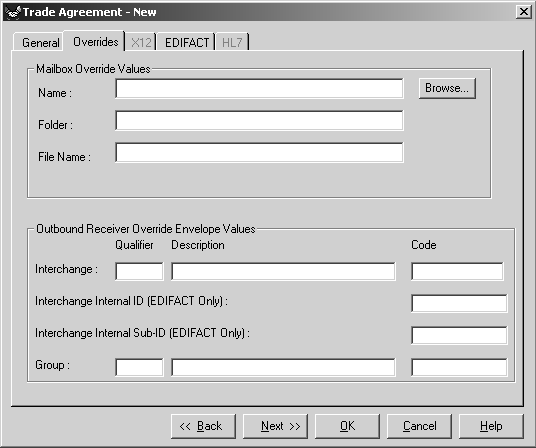

Interchange Internal ID |
Used only on the UNB segment of EDIFACT messages. |
Interchange Internal Sub-ID |
Used only on the UNB segment of EDIFACT messages (syntax 4 only). |
Group Qualifier |
Qualifier for the group-level inner EDI envelope identification for the Trading Partner. You can obtain a qualifier from a list of available parameters by right-clicking on this field. |
Group Description |
Description for the group-level inner EDI envelope identification for the Trading Partner. |
Group Code |
Code for the group-level inner EDI envelope identification for the Trading Partner. |
