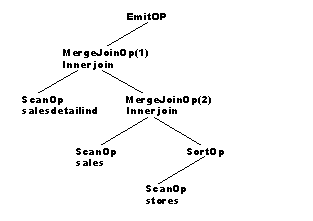

A query plan is an upside down tree of operators. The position of each operator in the tree determines its order of execution. Execution starts down the left-most branch of the tree and proceeds to the right. To illustrate execution, this section steps through the execution of the query plan for the example, above. Figure 2-1 shows a graphical representation of the query plan.
To generate a result row, the EmitOp calls for a row from its child, the MergeJoinOp(1). MergeJoinOp(1) calls for a row from its left child, the ScanOp for salesdetailind. When it receives a row from its left child, MergeJoinOp(1) calls for a row from its right child, MergeJoinOp(2). MergeJoinOp(2) calls for a row from its left child, the ScanOp for sales. When it receives a row from its left child, MergeJoinOp(2) calls for a row from its right child, the SortOp. The SortOp is a data blocking operator. That is, it needs all of its input rows before it can sort them, so the SortOp keeps calling for rows from its child, the ScanOp for stores, until all rows have been returned. Then the SortOp sorts the rows and passes the first one up to the MergeJoinOp(2). The MergeJoinOp(2) keeps calling for rows from either the left or right child operators until it gets two rows that match on the joining keys. The matching row is then passed up to MergeJoinOp(1). MergeJoinOp(1) also calls for rows from its child operators until a match is found, which is then passed up to the EmitOp to be returned to the client. In effect, the operators are processed using a left-deep postfix recursive strategy.

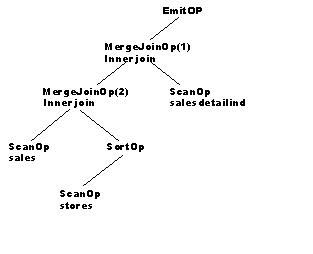

Figure 2-2 shows a graphical representation of an alternate query plan for the same example query. This query plan contains all of the same operators, but the shape of the tree is different.
Figure 2-2: Alternate query plan
The showplan output corresponding to the query plan in Figure 2-2 is:
QUERY PLAN FOR STATEMENT 1 (at line 1). 6 operator(s) under root The type of query is SELECT. ROOT:EMIT Operator |MERGE JOIN Operator (Join Type: Inner Join) | Using Worktable3 for internal storage. | Key Count: 1 | Key Ordering: ASC | | |MERGE JOIN Operator (Join Type: Inner Join) | | Using Worktable2 for internal storage. | | Key Count: 1 | | Key Ordering: ASC | | | | |SCAN Operator | | | FROM TABLE | | | sales | | | Table Scan. | | | Forward Scan. | | | Positioning at start of table. | | | Using I/O Size 2 Kbytes for data pages. | | | With LRU Buffer Replacement Strategy for data pages. | | | | |SORT Operator | | | Using Worktable1 for internal storage. | | | | | | |SCAN Operator | | | | FROM TABLE | | | | stores | | | | Table Scan. | | | | Forward Scan. | | | | Positioning at start of table. | | | | Using I/O Size 2 Kbytes for data pages. | | | | With LRU Buffer Replacement Strategy for data pages. | | |SCAN Operator | | FROM TABLE | | salesdetail | | Index : salesdetailind | | Forward Scan. | | Positioning at index start. | | Index contains all needed columns. Base table will not be read. | | Using I/O Size 2 Kbytes for index leaf pages. | | With LRU Buffer Replacement Strategy for index leaf pages.
The showplan output conveys the shape of the query plan by using indentation and the “|” symbol to indicate which operators are under which and which ones are on the same or different branches of the tree. There are two rules to interpreting the tree shape:
The pipe “|” symbols form a vertical line that starts at the operator’s name and continue down past all of the operators that are under it on the same branch.
Child operators are indented to the left for each level of nesting.
Using these rules, the shape of the query plan in Figure 2-2 can be derived from the previous showplan output with the following steps:
The root or emit operator is at the top of the query plan tree.
The merge join operator (MergeJoinOp(1)) is the left child of the root. The vertical line that starts at MergeJoinOp(1) travels down the length of the entire output, so all of the other operators are below MergeJoinOp(1) and on the same branch.
The left child operator of the MergeJoinOp(1) is another merge join operator, (MergeJoinOp(2)).
The vertical line that starts at MergeJoinOp(2) travels down past a scan, a sort, and another scan operator before it ends. These operators are all nested as a sub-branch under MergeJoinOp(2).
The first scan under MergeJoinOp(2) is its left child, the scan of the sales table.
The sort operator is the right child of MergeJoinOp(2) and the scan of the stores table is the only child of the sort.
Below the output for the scan of the stores table, several vertical lines end. This indicates that a branch of the tree has ended.
The next output is for the scan of the salesdetail table. It has the same indentation as MergeJoinOp(2), indicating that it is on the same level. In fact, this scan is the right child of MergeJoinOp(1).
Most operators are either unary or binary. That is,
they have either a single child operator or two child operators
directly beneath. Operators that have more than two child operators
are called “nary”. Operators that have no children
are leaf operators in the tree and are termed “nullary.”
Another way to get a graphical representation of the query plan is to use the command set statistics plancost on. See Adaptive Server Reference Manual: Commands for more information. This command is used to compare the estimated and actual costs in a query plan. It prints its output as a semigraphical tree representing the query plan tree. It is a very useful tool for diagnosing query performance problems.
