The Sybase ETL Small Business Edition desktop consists of the following major sections:
The Navigator section lets you select the repositories, projects or jobs that you want to work on.
The Design section lets you design the project and job flow, drag components onto it, connect them with each other, and to simulate the data flow between them.
The Properties section lets you set properties of the component currently selected in the Design section.
The Component Store contains all components that are installed and available for designing projects. To add a component to the Design section, you can double click it, drag it to the Design section, or right-click and select Add from the pop-up menu.

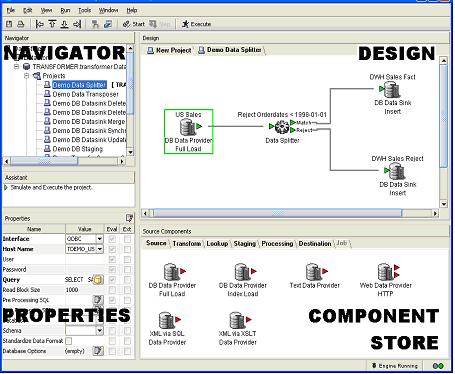

Figure 2-1 shows an example of the Sybase ETL Small Business Edition desktop.
Figure 2-1: Sybase ETL SBE Development desktop
