Chapter 3 Building Information Liquidity Diagrams

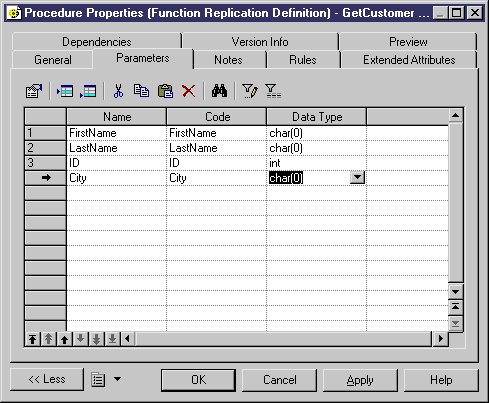

This tab lets you create or delete the call parameters of the procedure. In the following example, the GetCustomer procedure has a FirstName parameter with a char(0) data type:
Each parameter contains the following properties:
| Property | Description |
|---|---|
| Name | Specifies the name of the item, which should be clear and meaningful, and should convey the item's purpose to non-technical users. |
| Code | Specifies the technical name of the object, which is used for generating code or scripts. |
| Comment | Specifies a descriptive comment for the object. |
| Stereotype | Extends the semantics of an object derived from existing objects but specific to your needs. You can enter stereotypes directly in this field, or add stereotypes to the list by specifying them in your model's resource file or in an extended model definition. |
| Procedure | Specifies the procedure to which the parameter belongs. |
| Data type | Specifies the form of the data corresponding to the parameter, such as numeric, alphanumeric, boolean, or other. |
| Length | Specifies the maximum length of the data type. |
| Precision | Specifies the maximum number of places after the decimal point. |
