Chapter 3 Building Information Liquidity Diagrams

Creating an article

You can create an article in any of the following ways:

• Select the Articles tab in a publication property sheet.
• Right-click a publication in the Browser, and select New→Article.

For general information about creating objects, see the Objects chapter in the Core Features Guide .

To create an article from the publication property sheet:

1. Open a publication property sheet and click the Articles tab.
2. Click the Add a Row tool and enter a name and a code for the article.

   or

   [PDM associated with the source database] Click the Add Article from Source Database tool, select one or more tables or views from the selection dialog box, and then click OK.

   or

   [PDM associated with at least one remote database] Click the Add Article from Remote Databases tool, select one or more tables or views from the selection dialog box, and then click OK.

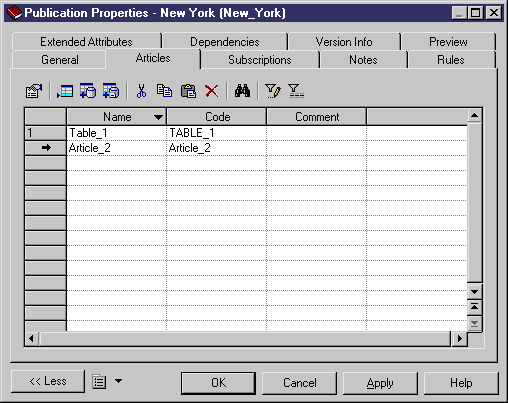

   In the following dialog box, Article_2 was created in the list and Table_1 was added from a selection list.

3. Click OK to close the property sheet and return to the model diagram.
