Chapter 10 Generating a Database from a PDM

Indicating the number of records in a table

Before you estimate database size, you indicate the number of records in each table that you generate.

To indicate the number of records in a table:

1. Select Model→Tables.

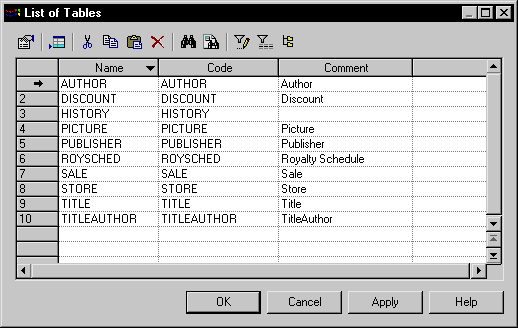

   The List of Tables is displayed.

2. Display the Test Number column.


      Display the column you need
   If you do not see the column you need, display it with the Customize Columns and Filter tool. For details, see "Customizing object list columns and filtering lists" section in the Objets chapter of the Core Features Guide .

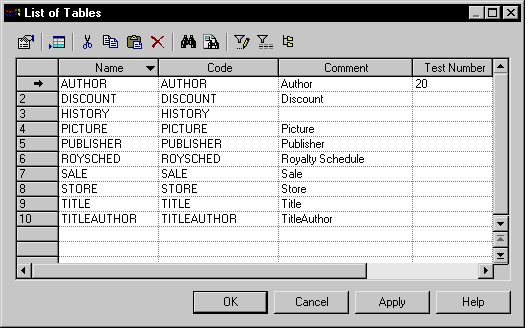

3. Type a value in the Test Number column for the table that requires an indication of the number of records.

4. Click OK.
