Chapter 10 Generating a Database from a PDM

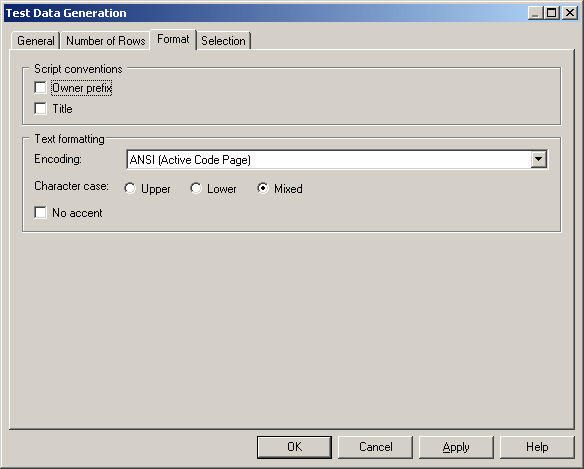

Test Data Generation Format tab

The Format tab allows you to set script format options.


The following options are available on this tab:

Option Result of selection
Owner prefix Specifies that an owner prefix is added.
Titles Specifies that each section of the script includes commentary in the form of titles.
Encoding Specifies the encoding format to use for test data generation. You should select the encoding format that supports the language used in your model and the database encoding format.
Character case Specifies the character case to use. The following settings are available:

  • Upper - all uppercase characters
  • Lower - all lowercase characters
  • Mixed - both uppercase and lowercase characters
No accent Non-accented characters replace accented characters in script.
