Chapter 10 Generating a Database from a PDM


Assigning a data profile from the list of tables

Steps To assign a data profile from the list of tables:

  1. Select Model→Tables.

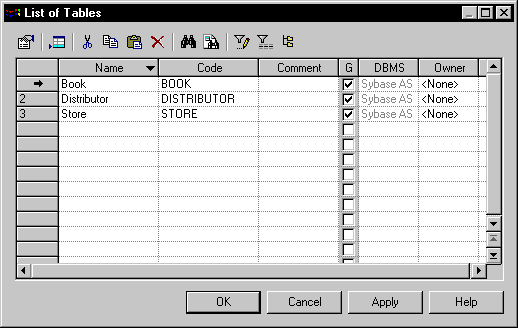

    The List of tables is displayed.
  2. Double-click a table in the list.

    The table property sheet opens to the General tab.
  3. Select the Columns tab.

    The Columns tab is displayed.
  4. Select a column in the list.
  5. Select a test data profile from the dropdown list box.

    Note   Display the column you need
    If you do not see the column you need, display it with the Customize Columns and Filter tool. For details, see "Customizing object list columns and filtering lists" section in the Objets chapter of the Core Features Guide .

  6. Click OK.
