Chapter 3 Building Conceptual and Logical Diagrams

Importing multiple interconnected PDM logical models

If you have previously created multiple PDMs with the logical model DBMS, and these models are connected by shortcuts and generation or other links, you can convert them en masse to logical data models and preserve their interconnections.

To open multiple deprecated PDM logical models:

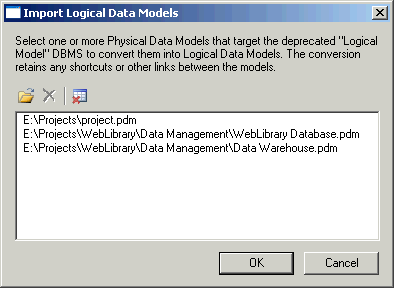

1. Select File→Import →Legacy Logical Data Models to open the Import Logical Data Models dialog:

2. Click Open, browse to the legacy PDMs you want to import, select them, and then click OK to add them to the list. You can, if necessary, add multiple PDMs from multiple directories by repeating this step.
3. When you have added all the necessary PDMs to the list, click OK to import them into interconnected LDMs.
