Chapter 10 Working with Java

Choosing a target application server

You can import an extended model definition in the current model, generate the specific descriptors of an application server, or choose an O/R mapping tool as follows:

To choose a target application server:

1. Select Model→Extended Model Definitions to display the List of Extended Model Definitions.
2. Click the Import an Extended Model Definition tool.

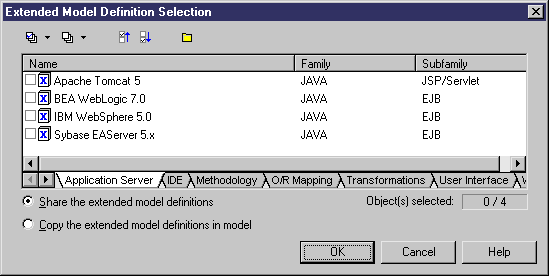

   The Extended Model Definition Selection page is displayed.

3. Select the required extended model definition.
4. Select either Share or Copy.

   Share allows you to share the extended model definition file stored in the installation directory. Copy allows you to create a copy of the extended model definition file in the model.
5. Click OK.

   The list of Extended Model Definitions displays the selected file.
6. Click OK.

   The new node for the extended model definition is displayed in the Browser. The extended model definition is now attached to the model.
