Chapter 6 Diagrams and Symbols

Navigating between and opening existing diagrams

You can open a diagram in any of the following ways:

• Double-click the diagram entry in the Browser.

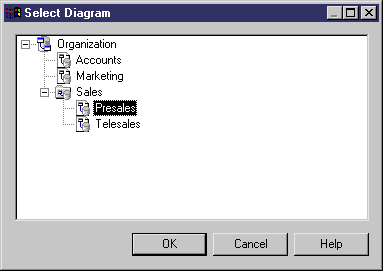

• Press ctrl + d, or select View→Diagram→Select Diagram to open the Select Diagram dialog box, select a diagram node in the tree and click OK.

• In the case of package diagrams, you can additionally:


  • Select the Open Package Diagram tool from the Palette and click on a package symbol.
  • Press ctrl and double-click a package symbol.
  • Right-click a package symbol and select Diagram→Open Diagram from the package contextual menu.
