Chapter 7 Scripting PowerDesigner

Using VBScript file samples

PowerDesigner ships with a set of script samples, that you can use as a basis to create your own scripts. They are located in the VB Scripts folder of the PowerDesigner installation directory.

These scripts are intended to show you a range of the type of actions you can do over PowerDesigner objects using VBScript and also to help you in the code writing of your own scripts as you can easily copy/paste some code pieces from the sample into your script.

It is always recommended to make a backup copy of the sample file for it to remain intact.

Model scan sample

The following example illustrates a script with a loop that browses a model and its sub-packages to display objects information:

' Scan CDM Model and display objects information
' going down each package
Option Explicit
ValidationMode = True
InteractiveMode = im_Batch
' get the current active model
Dim mdl ' the current model
Set mdl = ActiveModel
If (mdl Is Nothing) Then
   MsgBox "There is no Active Model"
Else
   Dim fldr
   Set Fldr = ActiveDiagram.Parent
   ListObjects(fldr)
End If
' Sub procedure to scan current package and print information on objects from current package
' and call again the same sub procedure on all children package
' of the current package
Private Sub ListObjects(fldr)
   output "Scanning " & fldr.code
   Dim obj ' running object
   For Each obj In fldr.children
      ' Calling sub procedure to print out information on the object
      DescribeObject obj
   Next
   ' go into the sub-packages
   Dim f ' running folder
   For Each f In fldr.Packages
      'calling sub procedure to scan children package
      ListObjects f
   Next
End Sub
' Sub procedure to print information on current object in output
Private Sub DescribeObject(CurrentObject)
   if CurrentObject.ClassName ="Association-Class link" then exit sub
   'output "Found "+CurrentObject.ClassName
   output "Found "+CurrentObject.ClassName+" """+CurrentObject.Name+""", Created by "+CurrentObject.Creator+" On "+Cstr(CurrentObject.CreationDate)
End Sub

Model creation sample

The following example illustrates a script that creates a new OOM model:

Option Explicit
' Initialization
' Set interactive mode to Batch
InteractiveMode = im_Batch
' Main function
' Create an OOM model with a class diagram
Dim Model
Set model = CreateModel(PdOOM.cls_Model, "|Diagram=ClassDiagram")
model.Name = "Customer Management"
model.Code = "CustomerManagement"
' Get the class diagram
Dim diagram
Set diagram = model.ClassDiagrams.Item(0)
' Create classes
CreateClasses model, diagram
' Create classes function
Function CreateClasses(model, diagram)
   ' Create a class
   Dim cls
   Set cls = model.CreateObject(PdOOM.cls_Class)
   cls.Name = "Customer"
   cls.Code = "Customer"
   cls.Comment = "Customer class"
   cls.Stereotype = "Class"
   cls.Description = "The customer class defines the attributes and behaviors of a customer."
   ' Create attributes
   CreateAttributes cls
   ' Create methods
   CreateOperations cls
   ' Create a symbol for the class
   Dim sym
   Set sym = diagram.AttachObject(cls)
   CreateClasses = True
End Function
' Create attributes function
Function CreateAttributes(cls)
   Dim attr
   Set attr = cls.CreateObject(PdOOM.cls_Attribute)
   attr.Name = "ID"
   attr.Code = "ID"
   attr.DataType = "int"
   attr.Persistent = True
   attr.PersistentCode = "ID"
   attr.PersistentDataType = "I"
   attr.PrimaryIdentifier = True
   Set attr = cls.CreateObject(PdOOM.cls_Attribute)
   attr.Name = "Name"
   attr.Code = "Name"
   attr.DataType = "String"
   attr.Persistent = True
   attr.PersistentCode = "NAME"
   attr.PersistentDataType = "A30"
   Set attr = cls.CreateObject(PdOOM.cls_Attribute)
   attr.Name = "Phone"
   attr.Code = "Phone"
   attr.DataType = "String"
   attr.Persistent = True
   attr.PersistentCode = "PHONE"
   attr.PersistentDataType = "A20"
   Set attr = cls.CreateObject(PdOOM.cls_Attribute)
   attr.Name = "Email"
   attr.Code = "Email"
   attr.DataType = "String"
   attr.Persistent = True
   attr.PersistentCode = "EMAIL"
   attr.PersistentDataType = "A30"
   CreateAttributes = True
End Function
' Create operations function
Function CreateOperations(cls)
   Dim oper
   Set oper = cls.CreateObject(PdOOM.cls_Operation)
   oper.Name = "GetName"
   oper.Code = "GetName"
   oper.ReturnType = "String"
   Dim body
   body = "{" + vbCrLf
   body = body + "   return Name;" + vbCrLf
   body = body + "}"
   oper.Body = body
   Set oper = cls.CreateObject(PdOOM.cls_Operation)
   oper.Name = "SetName"
   oper.Code = "SetName"
   oper.ReturnType = "void"
   Dim param
   Set param = oper.CreateObject(PdOOM.cls_Parameter)
   param.Name = "newName"
   param.Code = "newName"
   param.DataType = "String"
   body = "{" + vbCrLf
   body = body + "   Name = newName;" + vbCrLf
   body = body + "}"
   oper.Body = body
   CreateOperations = True
End Function

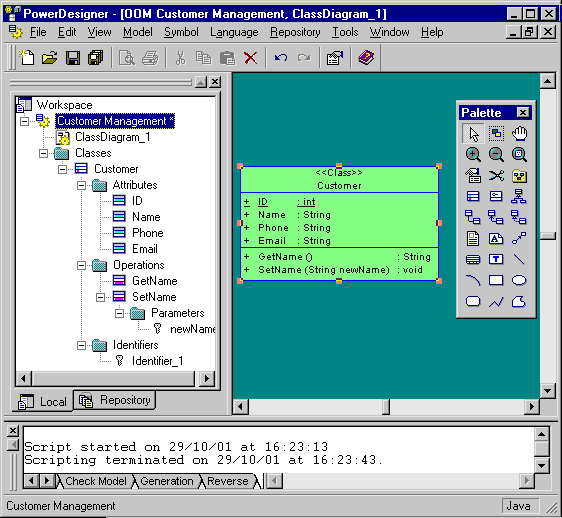

The previous script gives the following result in the interface:
