Chapter 4 Using the Report Editor

Modifying a Model Report

You can use an existing model report to generate a modified model report.

You can select an existing report from the List of Reports if you need to:

Generate for a different output
Change selection of objects
Add sections

To modify a model report:

Select Report→Reports from the model diagram window.

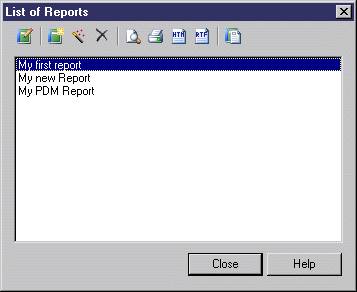

The List of Reports is displayed. It shows the alphabetical list of all available reports saved in the model.

Select the report you want to modify and click the Edit Report tool.

The structure of the selected report is displayed in the Report Editor window.

Modify the report.

You can then generate it using the appropriate command in the Report menu.

Quick model report generation from the List of Reports
If you want to quickly generate a report from an existing one without modifying it, select a report in the List of Reports then click the Print Report tool, or the Generate HTML or Generate RTF tool.
