Chapter 4 Using the Report Editor
In the Report Editor, whichever model you are working with, the Available Items pane (left pane) always displays the following items in the same order:
| Report item | Description |
|---|---|
| Independent items | Customizable items that allow you to structure your report (for example, a table of contents, a title or a page break) |
| Model-dependent items | Contain information about a model or a package (for example, a card, a list of attached rules or a description) |
| Object lists | Contain tables listing objects from a model or a package (for example, for an Information Liquidity Model (ILM), can be the list of servers, list of replication processes, etc.) |
| Books | Expandable object folders that contain dependent items (for example, for an ILM, the Server book item contains detailed properties for the server object) |
| Object-dependent items | Detailed properties of a specific object type. Can only appear under an object folder (book item) |

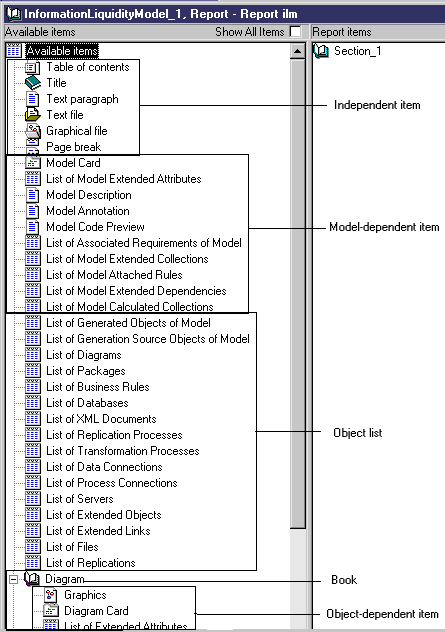

The following illustration shows how the Available Items pane looks like in a report for an Information Liquidity Model (ILM):
