Chapter 16 Working with VB .NET

Generating ASP.NET

The generation process generates only file objects having the Artifact property selected.

To generate ASP:

1. Select Language→Generate C# or VB.NET code to display the Generation dialog box.
2. Select or browse to a directory that will contain the generated files.
3. Click the Selection tab to display the Selection tab.
4. Select the objects you need in the different sub-tabs.

   For more information on the selection tab, see section Selecting objects to generate, in chapter Generating for a Language.
5. Click Apply.

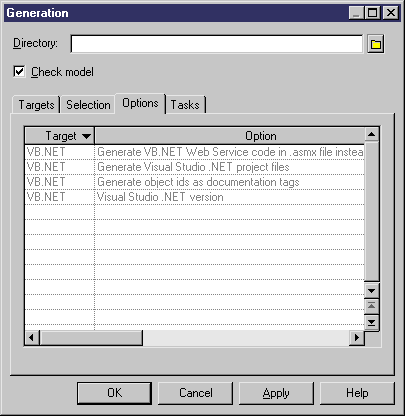

6. Click the Options tab to display the Options tab.
7. Specify your generation options in the Options tab.


   For more information on the generation options, see section Defining generation options, in chapter Generating for a Language.
8. Click Apply.

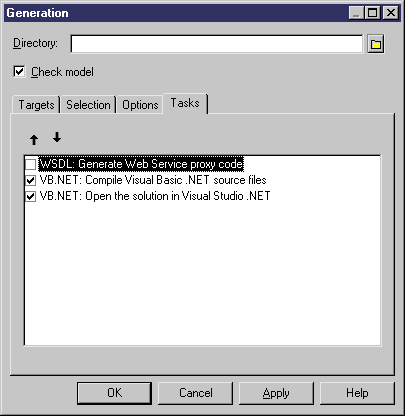

9. Click the Tasks tab to display the Tasks tab.
10. Select the commands you want to perform during generation in the Tasks tab.


    For more information on the generation tasks, see section Defining generation tasks, in chapter Generating for a Language.

    You must beforehand set the environment variables from General Options→Variables in order to activate them in this tab.

    For more information on how to set these variables, see section Defining environment variables, in chapter Using the PowerDesigner interface, in the General Features Guide .
11. Click OK.

    A progress box is displayed, followed by a Result list. You can use the Edit button in the Result list to edit the generated files individually.
12. Click Close.

    The files are generated in the generation directory.
