Chapter 14 Working with IDL

Struct

You create a CORBA struct type using a class with the <<CORBAStruct>> stereotype. You can mix attribute types in the struct class.

struct Customer {
   string name_lastname;
   long age;
};

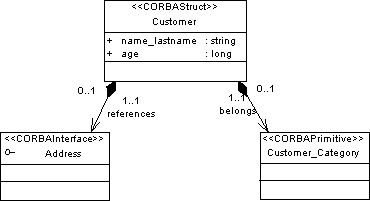

You use composition links to define complex struct classes as defined in the following example:

struct Customer {
   string name_lastname;
   long age;
   Address references;
   Customer_Category belongs;
};
