Defining the script of an autofix

Chapter 4 Managing Profiles

Defining the script of an autofix

If the custom check you have defined supports an automatic correction, you can type the body of this function in the Autofix Script tab of the custom check properties.

The autofix is visible in the Check Model Parameters dialog box, it is selected by default if you select the Execute the Automatic Correction by Default check box in the General tab of the custom check properties.

By default, the Autofix Script tab displays the following script items:

%Fix% is the function name, it is passed on parameter obj. It is displayed as a variable, which is a concatenation of the name of the resource file, the name of the current metaclass, the name of the stereotype or criterion, and the name of the fix. If any of these names contains an empty space, it is replaced by an underscore
The variable outmsg is a parameter of the fix function. You need to specify the fix message that will appear when the fix script will be executed
The return value line that indicates if the fix succeeds or not

We will use the same example as in section Defining the script of a custom check, to define an autofix script that removes the columns with incorrect data type from index.

To define the script of an autofix:

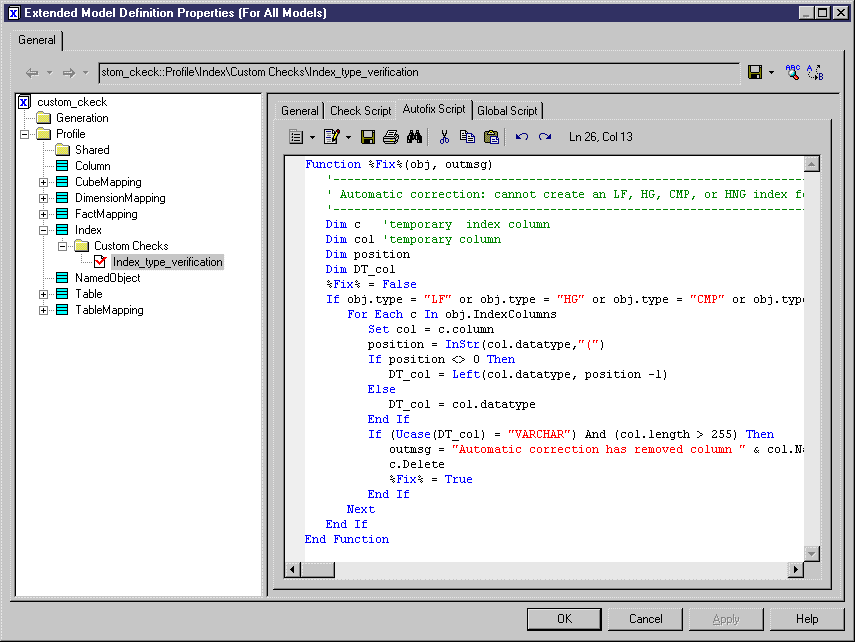

Click the Autofix Script tab in the custom check properties.

By default, the function is declared at the beginning of the script. You should not modify this line.

Type a comment after the function declaration in order to document the custom check, and then declare the different variables used in the script:
```
Dim c 'temporary  index column
Dim col 'temporary column
Dim position
Dim DT_col
```

Enter the function body:

%Fix% = False
   If obj.type = "LF" or obj.type = "HG" or obj.type = "CMP" or obj.type ="HNG" Then
      For Each c In obj.IndexColumns
         Set col = c.column
         position = InStr(col.datatype,"(")
         If position <> 0 Then
            DT_col = Left(col.datatype, position -1)
         Else
            DT_col = col.datatype
         End If
         If (Ucase(DT_col) = "VARCHAR") And (col.length > 255) Then
            outmsg = "Automatic correction has removed column " & col.Name & " from index."
            c.Delete
            %Fix% = True
         End If
      Next
   End If

Click Apply to save your changes.
