Chapter 4 Working with an XML model

Creating a data source in an XML model

You can create as many data sources as you need in a model. Each data source defines the list of models used as source of data in the current model.

To create a data source in an XML model:

1. Select Model→Data Sources to display the List of Data Sources.
2. Click a blank line in the list.

   or

   Click the Add a Row tool.

   An arrow is displayed at the beginning of the line.
3. Type a name and a code for the data source.
4. Click Apply.

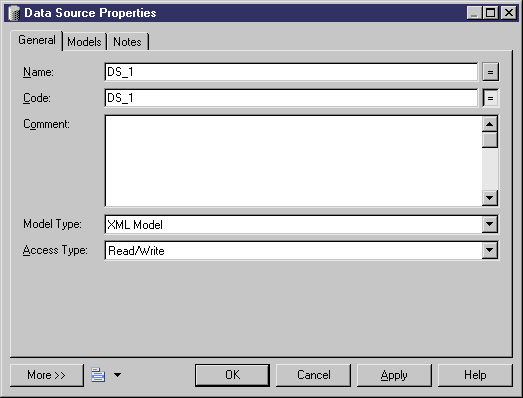

5. Click the Properties tool to display the data source property sheet.

6. In the General tab, select a model type in the Model Type list.
7. In the Models tab, click the Add Models tool.

   A model selection dialog box is displayed. Select the model(s) for the current data source.
8. Click OK in each of the dialog boxes.

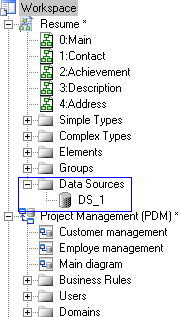

   The data source is displayed in the Browser tree view.
