Chapter 3 Building an XML model

Creating a business rule

You can create a business rule in different ways:

• From the Browser tree view
• From the List of Business Rules

To create a business rule from the List of Business Rules:

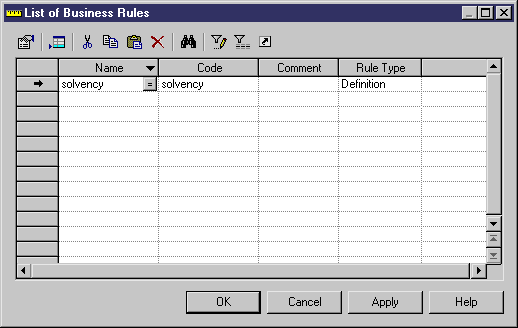

1. Select Model→Business Rules to display the List of Business Rules.
2. Click the Add a Row tool.

   or

   Click a blank line in the list.

   A rule is displayed with generic name, code and rule type (Definition, by default).
3. Type a name and a code for the business rule.

4. Click Apply.
5. Double click the arrow at the beginning of the line.

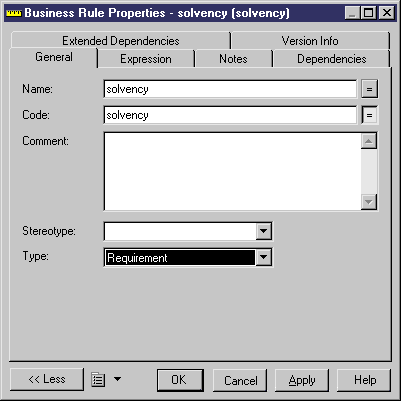

   The business rule property sheet is displayed.
6. In the General tab, select a business rule type in the Type list.

7. Click OK.
