Chapter 3 Creating Borland JBuilder Project Files

Adding BEA WebLogic Application Server Support

If you create CMP EJB components, PowerDesigner can generate WebLogic specific O/R mapping descriptor and deployment descriptor.

These descriptors will be generated in the JBuilder EJB group.

To add WebLogic application server support:

1. Select Model→Extended Model Definitions.
2. In the List of Extended Model Definitions, click the Import tool.

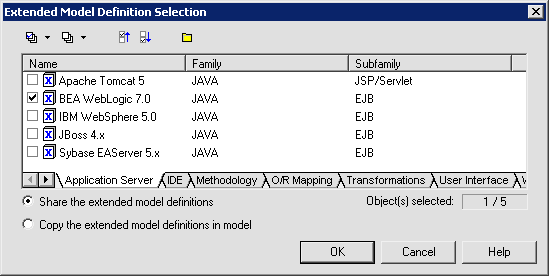

3. Select the BEA WebLogic profile in the Application Server tab:

4. Click OK. The profile is imported into the current model.

For more information on how to generate EJBs for BEA WebLogic, see the BEA WebLogic chapter.
