Chapter 8 O/R Mapping Modeling


One-to-many association transformation

Unlike one-to-one associations, just one foreign key will be generated for each one-to-many association, whatever its direction (bidirectional or unidirectional). The reference key navigates from the table generated from the entity class on multiple-valued side to the table generated from the entity class on single-valued side.

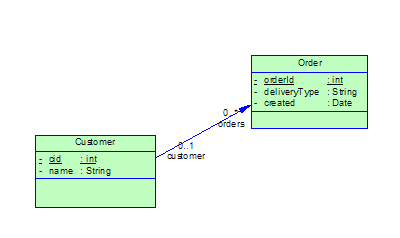

Given a one-to-many association defined between the class Customer and the class Order :


The generated foreign key will be the following:


PowerDesigner can generate a primary key of a parent table as part of the primary key of the child table.

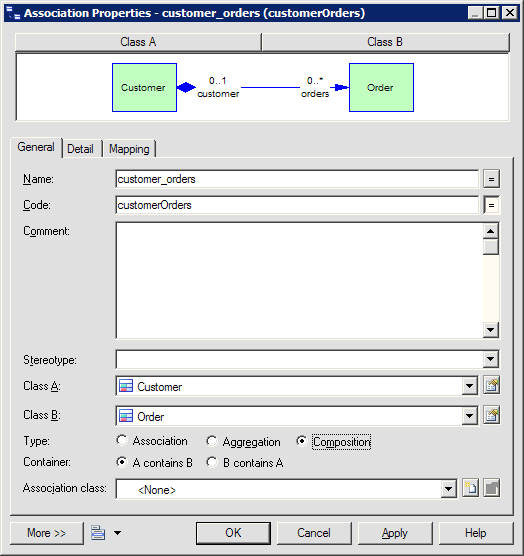

To do so, you need to define the association as composition with the class on single-valued side containing the class on multiple-valued side:

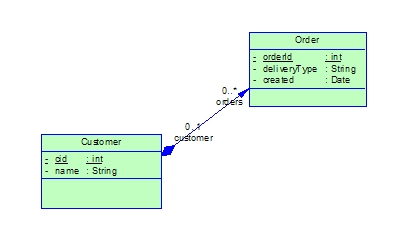

The association is defined as composition association with the class Customer containing the class Order . The association looks like the following:

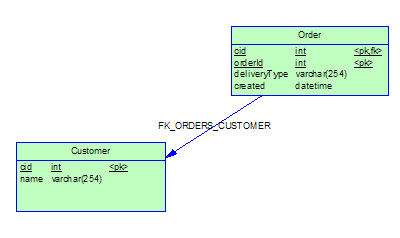

The generated tables and reference look like the following:


The primary key of the table Customer migrates into the table Order as part of its primary key.

For most O/R Mapping frameworks, one unidirectional one-to-many association will usually be mapped to a middle table and two references navigating from the middle table to the tables mapped by the two entity classes.

For more information, see the Defining one-to-many association mapping section.
