Chapter 3 Building a Requirements Model

Customizing columns and filtering rows

You can customize the columns displayed and use criteria to filter the rows in a requirements document view.

Steps To customize columns and filter rows in a requirements document view:

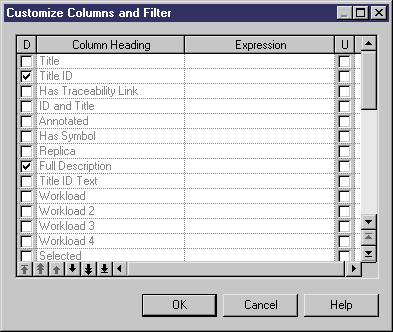

  1. Click the Customize Columns and Filter tool to open the Customize Columns and Filter dialog box.
  2. To specify columns to display, select or clear check boxes in the Displayed (D) column.
  3. To reorder the display of columns, use the arrow buttons at the bottom-left corner of the list.
  4. To filter the rows displayed, enter an expression in the expression column.

    For more information on filtering rows, click the Help button or see the "Defining a filter on a list" section in the "Using the PowerDesigner Interface" chapter, in the General Features Guide .
  5. Click OK.

    The requirements document view is displayed with customized columns and filtered rows.
