Chapter 13 Generating a Database from a PDM

Assigning a data profile from the list of tables

To assign a data profile from the list of tables:

1. Select Model→Tables.

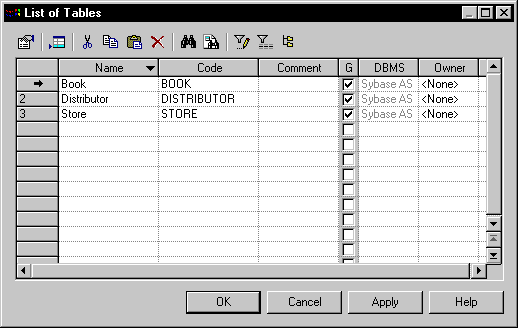

   The List of tables is displayed.

2. Double-click a table in the list.

   The table property sheet opens to the General tab.
3. Select the Columns tab.

   The Columns tab is displayed.

4. Select a column in the list.
5. Select a test data profile from the dropdown list box.


      Display the column you need
   If you do not see the column you need, display it with the Customize Columns and Filter tool. For details, see the General Features Guide .


6. Click OK.
