Chapter 9 Working with PDMs

Checking a global PDM

To check a global PDM:

1. Select Tools→Check Model.

   or

   Right-click the diagram background and select Check Model from the contextual menu.

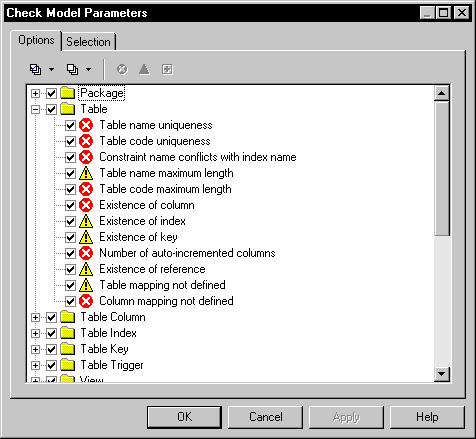

   The Check Model Parameters dialog box opens to the Options tab.
2. Expand an object parameter node.

   The object parameters which are verified by Check Model are displayed with the symbols indicating a degree of problem severity.

3. If you want to change a degree of problem severity, select the object parameter and then select either the Error or Warning tool.

   The symbol changes to the appropriate severity level.
4. If you want PowerDesigner to automatically correct a problem, select the object parameter and then select the Automatic Correction tool.

   The Automatic Correction symbol is displayed superimposed on the Error or Warning symbol for that object parameter.

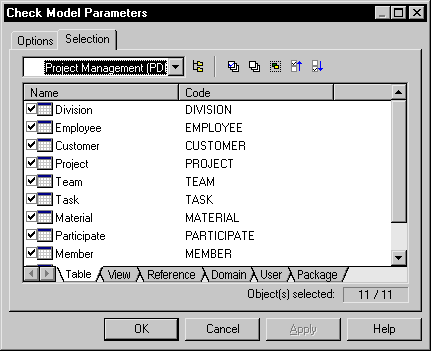

5. Click the Selection tab.

   The Selection tab is displayed.
6. Select a model from the dropdown list at the top of the dialog box.
7. Click an object tab.

   The corresponding object tab displays all the objects in the current PDM.

8. Select check boxes for objects that you want to be checked.

   Clear check boxes for objects that you do not want to be checked.


      Selecting all or clearing all check boxes
   You can select all object check boxes by clicking the Select All tool.
   You can clear all object check boxes by clicking the Deselect All tool.


9. Click OK.

   The Check Model Result List displays errors and warnings based on your choice of check options.
