Chapter 8 Working with Web Services

Reverse engineering WSDL options

The import process uses a WSDL file or a WSDL URL as an entry and allows you to create a component and its associated class. You can also create a deployment diagram with nodes and component instances to represent deployment.

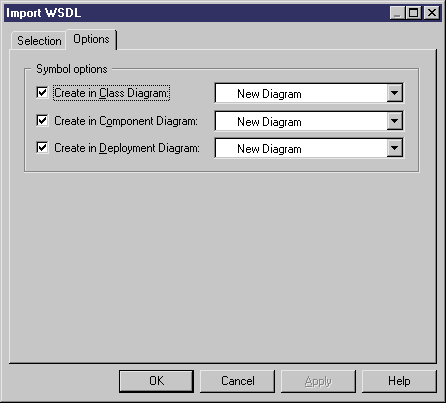

The Options tab in the Import WSDL dialog box includes the following items:

Item Description
Create in component diagram Allows you to create the symbol of components in the component diagram of your choice
Create in class diagram Allows you to create the symbol of classes in the class diagram of your choice
Create in deployment diagram Allows you to create the symbol of component instances in the deployment diagram of your choice

Steps To define WSDL reverse engineering options:

  1. Select Language→Import WSDL to display the Import WSDL dialog box.
  2. Click the Options tab to display the Options tab.
  3. Select the options you need.
  4. Click Apply.
