Creating a simple type

Chapter 3 Building an XML model

Creating a simple type

You can create a simple type:

From the Browser tree view
From the Model menu

To create a simple type from the Browser tree view:

Right-click the name or the icon of the model.

Select New→Simple Type in the contextual menu.

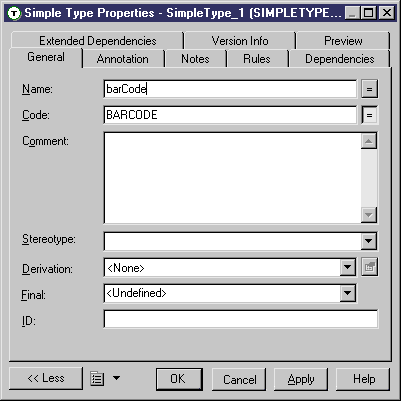

The simple type property sheet appears.

Type a name and a code for the simple type.

Click OK.

The simple type symbol appears in the diagram.

WARNING!

Caution
If the simple type symbol does not appear in the diagram, select Show Symbols in the Symbol menu, then click the Simple Type tab and select the simple type box to display its symbol in the diagram.
