Chapter 3 Building an XML model

Creating an attribute group

You can create an attribute group:

• From the Browser tree view
• From the List of Attribute Groups in the Model menu

For more information on the different ways to create an attribute group, see section Creating an object in chapter Managing objects of the General Features Guide .

To create an attribute group from the Browser tree view:

1. Right-click the name or the icon of the XML model.
2. Select New→Attribute Group in the contextual menu.

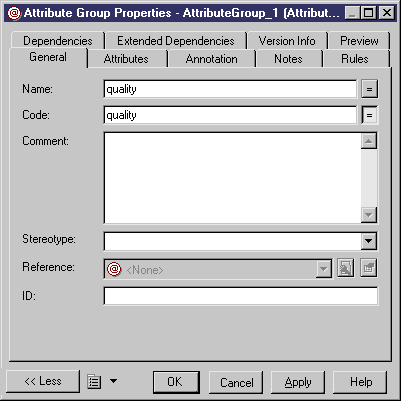

   The attribute group property sheet appears.
3. Type a name and a code for the attribute group.

4. Click OK.
5. Select the Attributes page.
6. Select different tools to add items to the attribute group.
7. Click Apply.
8. Double-click on the left of a row to display an item property sheet.
9. Type a name and a code for the item.
10. Repeat steps 8 and 9 for each item.
11. Click OK.
