Chapter 3 Building an XML model

Creating an element

You can create an element:

• From the palette
• From the Browser tree view
• From the List of Elements of the Model menu

For more information on the different ways to create an element, see section Creating an object in chapter Managing objects of the General Features Guide .

To create an element from the palette:

1. Select the Element tool in the palette.
2. Click an empty space in the diagram.

   An element symbol appears in the diagram at the click position.

3. Click the Pointer tool in the palette.

   or

   Right-click to recover the Pointer.
4. Double-click the element symbol in the diagram.

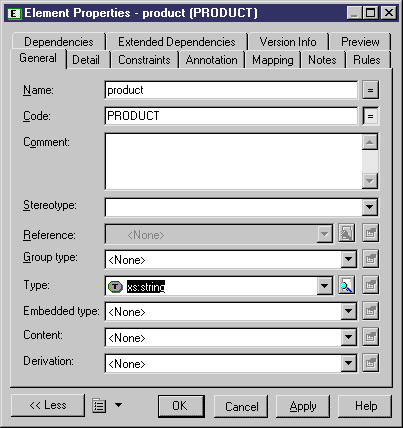

   The element property sheet appears.
5. Type a name and a code for the element.
6. Select a data type for the element. You can use the Type dropdown listbox or the Browse tool.

7. Click OK.

   The element symbol appears in the diagram, with its data type (between brackets) right under its name.
