Chapter 2 XML Model Basics

Model Preview page

The Preview page of the model property sheet displays a preview of the XSD, DTD or XDR file generated from the XML model.

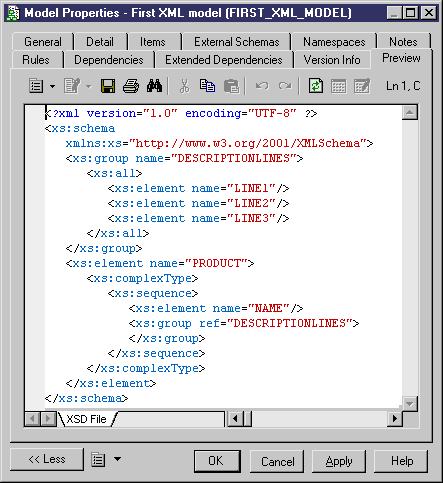

Example of an XSD file (or schema file):

The schema file starts with the XML declaration followed by the <schema> (root element) declaration.

All objects created in the model will appear in the schema file between the schema start-tag and end-tag.
