Chapter 3 Building an XML model

Creating an annotation

You can create a global annotation from the Items page or the External Schemas page of a model property sheet.

To create a global annotation from the Items page of a model property sheet:

1. In the Browser tree view, double-click the name or the icon of a model to display its property sheet.

   or

   Select Model→Model Properties to display the current model property sheet.
2. Select the Items page or the External Schemas page.
3. Click the Add Annotation tool.
4. Click Apply.
5. Double-click the arrow left of the annotation line.

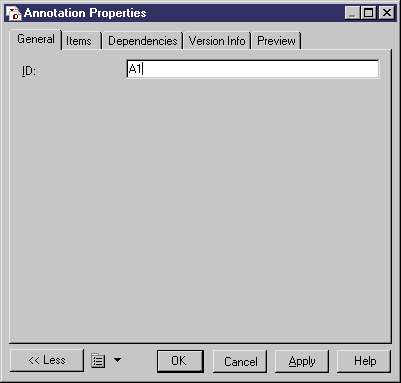

   The annotation property sheet opens at the General page.
6. Type an ID for the annotation.

7. Click OK.
