Chapter 3 Building an XML model

Defining simple content properties

A simple content allows you to extend or restrict the values of a complex type supporting character data or a simple type.

It cannot contain elements.

Simple content general property

The General page of a simple content property sheet allows you to define an id for the simple content.

The id value must be of type ID and unique within the model containing the simple content.

To create a simple content:

1. Select Simple in the Content dropdown listbox of a complex type property sheet.
2. Click Apply.
3. Click the Properties tool beside the Content dropdown listbox.

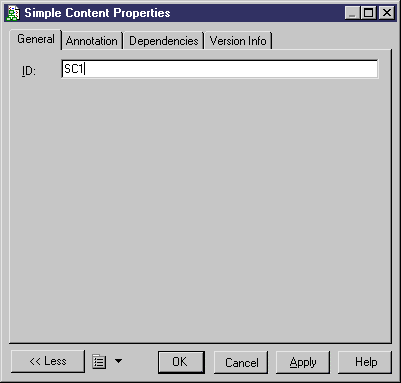

   The simple content property sheet appears.
4. Type an ID for the simple content.

5. Click OK.
