Chapter 3 Creating J2EE Applications for Sybase EAServer

Customizing EAServer Support

The EAServer support in PowerDesigner is entirely defined in the EAServer extended model definitions. You can customize them if necessary.

To customize the EAServer support:

1. Select Tools→Resources→Extended Model Definitions→Object-Oriented Models.

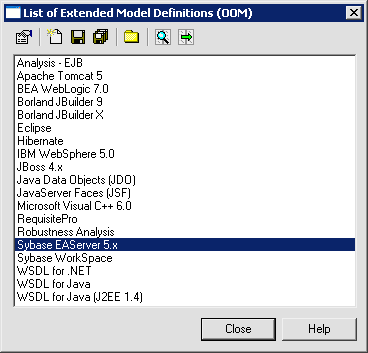

2. Double-click Sybase EAServer in the List of Extended Model Definitions.

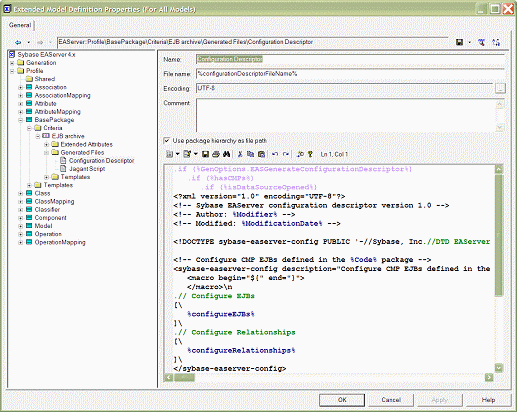

3. Use the Extended Model Definition Editor to modify the Configuration Descriptor template:

4. You can also modify the extended attributes, the options and the commands:
