Chapter 9 Creating J2EE Applications for IBM WebSphere 5.0

Customizing WebSphere Support

The WebSphere Application Server and WebSphere Application Developer support in PowerDesigner is entirely defined in the WebSphere profile. You can customize it if necessary.

Steps To customize WebSphere support:

  1. Select Tools→Resources→Extended Model Definitions→Object-Oriented Models.

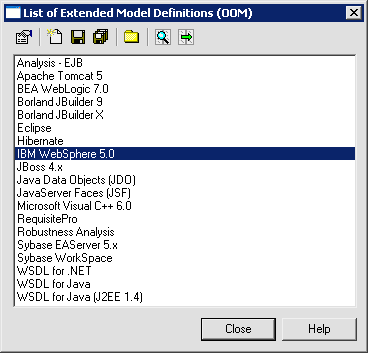

  2. Double-click IBM WebSphere 5.0 in the List of Extended Model Definitions.

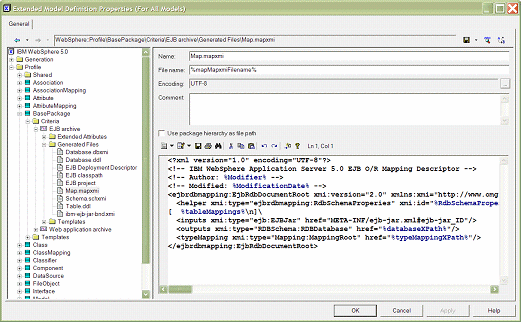

  3. Use the Extended Model Definition Editor to modify the file generation templates, the extended attributes, the options and the commands:
