Chapter 6 Generating JDO Persistent Objects

Customizing JDO Support

The JDO support in PowerDesigner is entirely defined in the JDO Extended Model Definition. You can customize it if necessary. You can also add the support for other JDO products.

To customize the JDO support:

1. Select Tools→Resources→Extended Model Definitions→Object-Oriented Models.
2. In the List of Extended Model Definitions, select Java Data Objects (JDO)

3. Click the Properties tool on the toolbar.

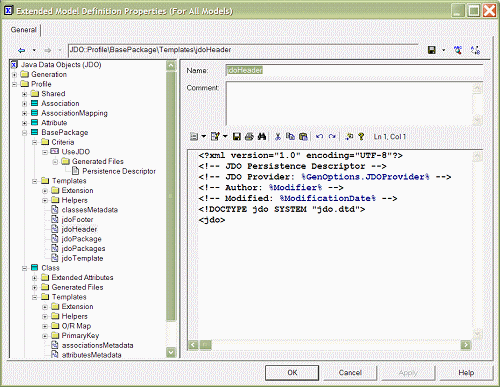

4. Use the Extended Model Definition Editor to modify the O/R Mapping template and the extended attributes.
