Chapter 11 Migrating from previous versions

Extracting a single project from a dictionary

You can extract one selected project from the dictionary and the models it contains. The project becomes a sub-directory in the destination directory and the models are extracted as files.

To extract a single project from a dictionary:

1. Select Dictionary→Multi-Model Extraction.

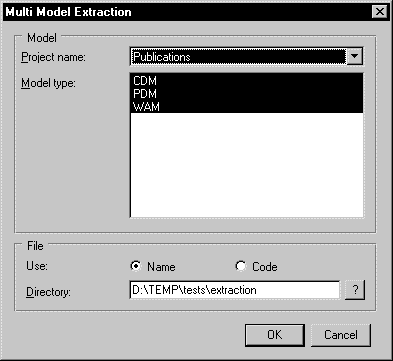

   The Multi-Model Extraction dialog box appears.
2. Select a project in the Project Name dropdown listbox.
3. Type a destination directory in the Directory box.

4. Click OK.
