Chapter 8 Managing document versions in the repository

Adding the related model versions of a model to a configuration

Related documents are versions of PowerDesigner models linked with shortcuts to another version of a model. When you add a model to a configuration, you can add all the models related to this model to the configuration.

To add the related model versions of a model to a configuration:

1. Select Repository→Configurations.

   The List of Configurations appears.
2. Select a configuration in the list.
3. Click the Properties tool.

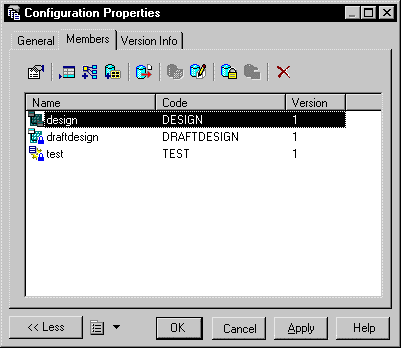

   The configuration property sheet appears.
4. Click the Members tab.

   The Members page appears.
5. Click the Add Related Documents tool.

   The related model versions appear in the list of members of the selected configuration.

6. Click OK.
