Chapter 14 DBMS-Specific Features

Adding a reference to a bitmap join index

You can add a reference to any bitmap join index. You do this, for example, when you create a new reference that you want to include in an existing bitmap join index.

To add a reference to a bitmap join index:

1. Select Model→Join Indexes.

   The List of Join Indexes appears.
2. Select a bitmap join index in the list.

   An arrow appears at the beginning of the line.
3. Click the Properties tool.

   The bitmap join indexes property sheet opens to the General page.

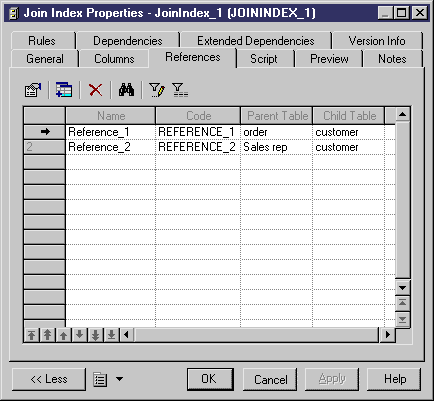

4. Click the References tab to display the References page.
5. Click the Add References tool.

   A selection dialog box appears. It displays available references depending on the selected base table.
6. Select one or several references in the list.
7. Click OK.

   The new reference appears in the References list.

8. Click OK.

   The reference is added to the bitmap join index.
