Chapter 12 Working with Web Services

Reverse engineering Web services using script files

To reverse engineer Web services (into an existing PDM) using script files:

1. In the menu bar, select Database→Reverse Engineer Database.

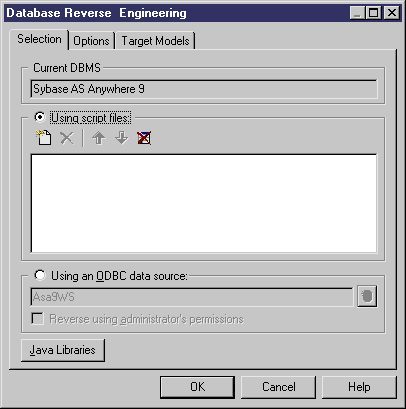

   The Database Reverse Engineering dialog box appears.
2. In the Selection page, select the Using script files radio button.

3. Click the Add Files button.

   The Open dialog box appears.
4. Select a directory in the Look in dropdown listbox, select All files (*.*) in the Files of type dropdown listbox, and select a file with a .trg extension in the list of files.
5. Click Open.

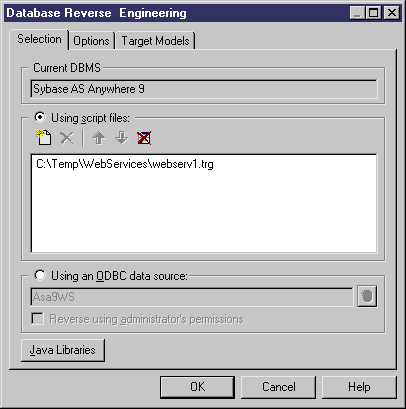

   The path of the selected script file appears in the Selection page.

6. Click OK.

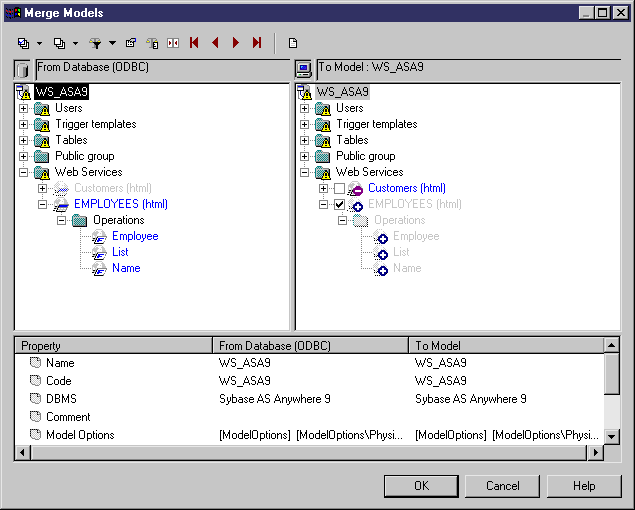

   The Merge Models window appears.


   The reverse engineered Web services appear checked in the tree view of the existing PDM (right panel).

   For more information on comparing and merging two models, see chapter Comparing and Merging Models in the General Features Guide .
7. Click OK.

   The reverse engineered Web services appear in the existing PDM.
