Chapter 9 Working with Object-Oriented Models

Checking an OOM

You can check the validity of an OOM at any time.

Steps To check an OOM:

  1. Select Tools→Check Model.

    or

    Right-click the diagram background and select Check Model from the contextual menu.

    The Check Model Parameters dialog box appears.

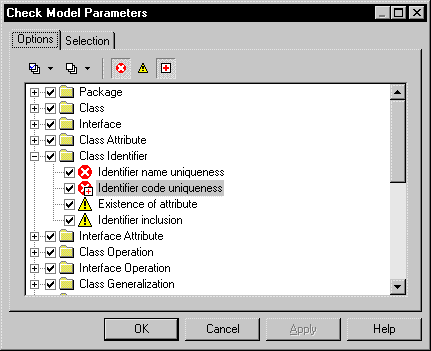

  2. Click the Options tab to display the Options page.
  3. Expand an object parameter node.

    The object parameters verified by the Check Model are displayed with the symbols indicating a degree of problem severity.
    You want to Action Result
    Modify a degree of problem severity Select the object parameter, then the Error or Warning tool

    Or

    Right click the object parameter, select Error, Warning or Detail to get more information from the contextual menu     		The icon changes to the appropriate severity level
    Set Automatic Correction of a problem Select the object parameter, then the Automatic Correction tool

    or

    Right click the object parameter, select Automatic Correction from the contextual menu     		The Automatic Correction icon is added to the Error or Warning symbol

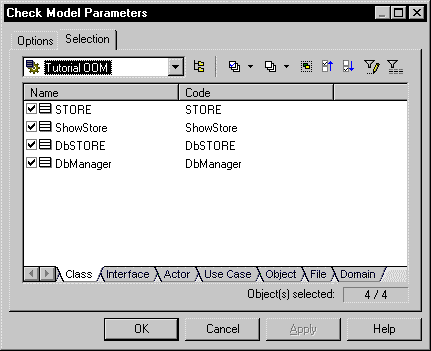

  4. Click the Selection tab to display the Selection page.
  5. Select a model from the dropdown listbox at the top of the dialog box.
  6. Click an object tab at the bottom of the Selection page.

    The corresponding object page displays the objects of the model.
  7. Select check boxes only for objects you want to be checked.

    Note   Selecting all or clearing all check boxes
    You can select or clear all object check boxes by clicking the Select All tool, or the Deselect All tool.

  8. Click OK.

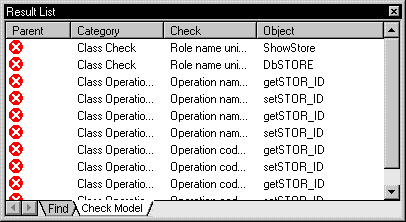

    The Check Model Result List displays errors and warnings based on the check options you have defined.


    Note   Dockable result window
    When you right click an object parameter, a menu appears listing correction options. Among these, you can also select options to clear, dock or hide the result window.
